THORACOLUMBAR FIXATION

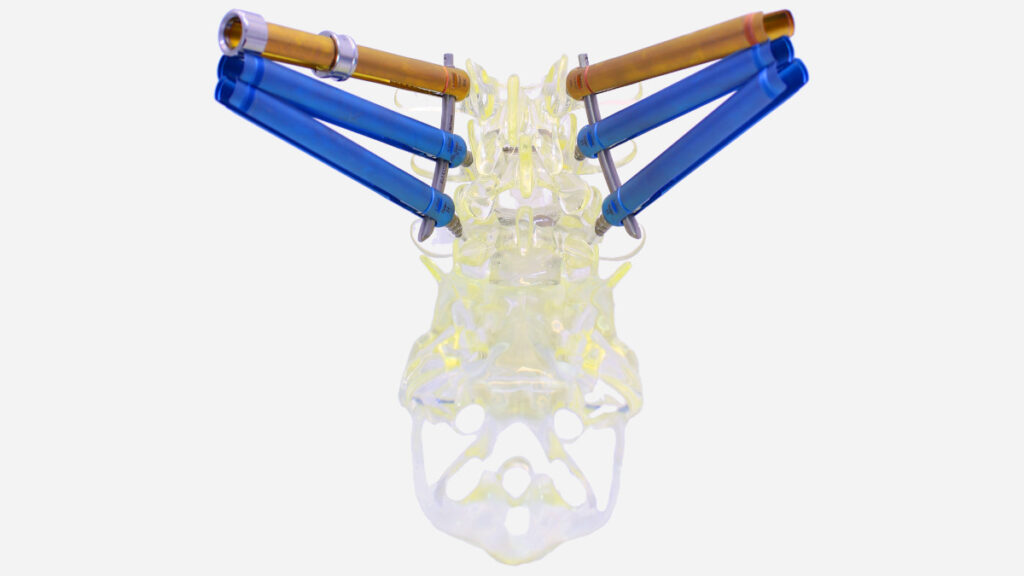

  • MINIMALLY INVASIVE SPINAL FIXATION SYSTEM
  • FOR 5.5MM ROD
  • For Both Percutaneous and Mini-Open Surgeries

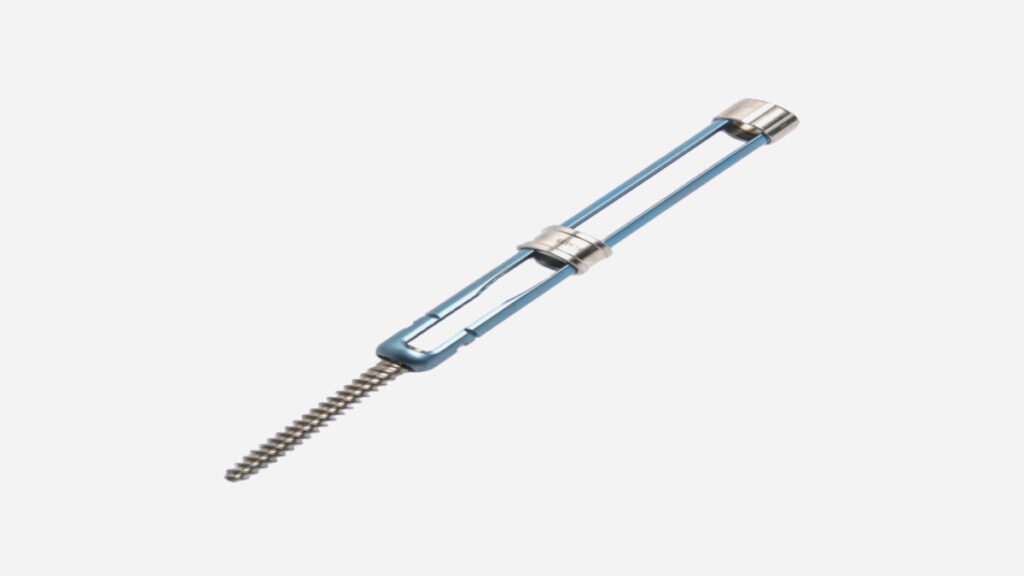

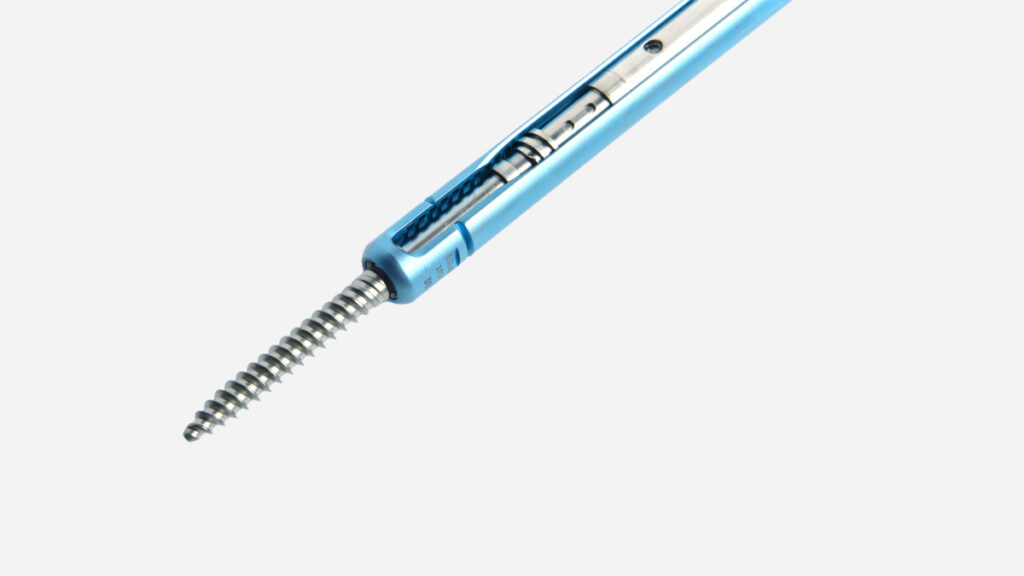

  • Long head poly screws for percutaneous insertion
  • 5.5mm, 6.0mm, 6.5mm, 7.0mm, 7.5mm, 8.0mm and 8.5mm diameter screws, with 30mm to 95mm length.
  • Variable-angulated & Fixed-angulated Rod Inserter
  • Titanium Alloy and Cobalt-Chrome Molybdenum Titanium Alloy Rod
  • Ti 6AL4V ELI Construct
  • ILIAD THORACOLUMBAR POSTERIOR FIXATION SYSTEM
  • For 6.0mm & 6.35mm rod
  • DOVETAIL Locking System with LINEAR SLOT Unique Dovetail Thread Design allows easy insertion while reducing the chance of cross threading. Linear Slot in set screw compresses upon final tightening to increase holding forces, preventing set screw back out.
  • Mono, poly, reduction mono, reduction poly, cannulated mono, cannulated poly screw options
  • Wide range of sizes (5.5mm to 7.5mm diameter, and 25mm to 100mm length)
  • Straight and pre-bending 6.0/6.35mm rods, 40mm to 1000mm length
  • Titanium Alloy and Cobalt-Chrome Molybdenum Alloy Rod
  • Ti 6AL4V ELI Construct
  • DOVETAIL Locking mechanism of screw threads with LINEAR SLOT of set screw
  • 5.5mm & 6.0mm Rod System available
  • Mono, Poly, Reduction Mono & Poly, Cannulated Mono & Poly available
  • Sizes: 4.0 – 10.0mm in diameter & 25 -100mm in length
  • Straight and pre-contoured rod available made up of titanium alloy and cobalt chrome Molybdenum alloy
  • Diverse types and sizes of rod-to-rod connectors, dominos, hooks, off-set connectors
  • Easy-to-use Instrumentation

INTERBODY CAGE

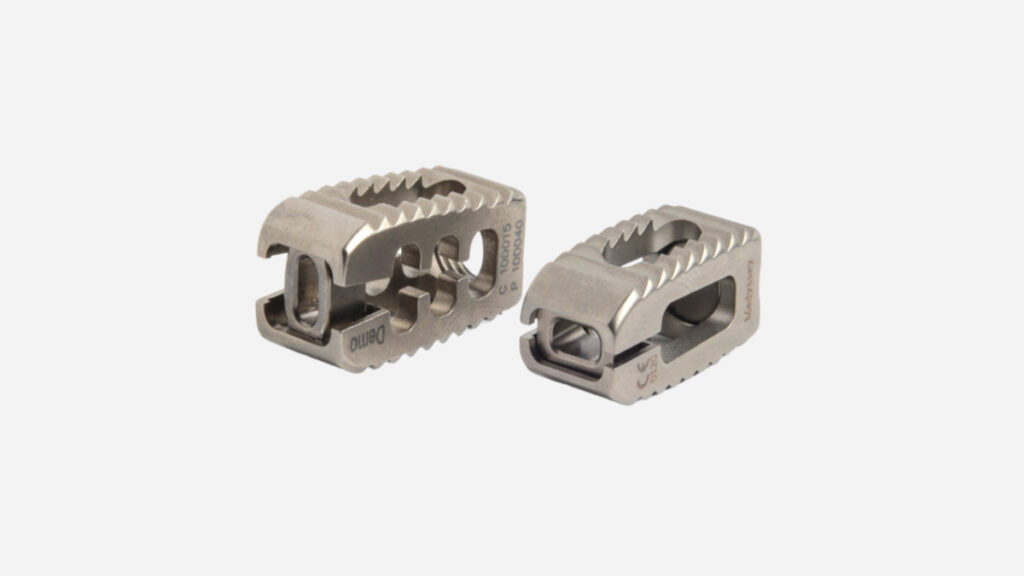

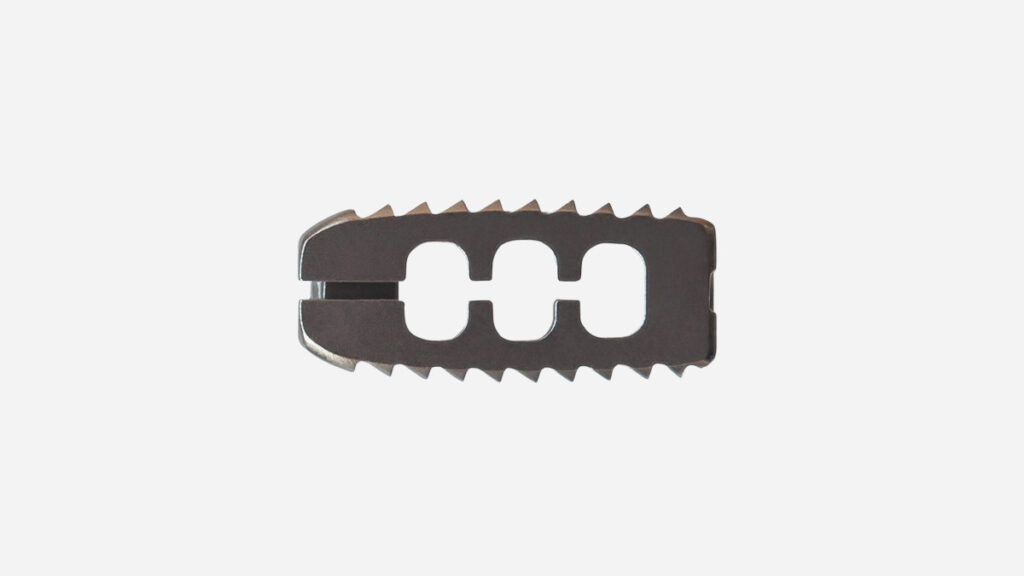

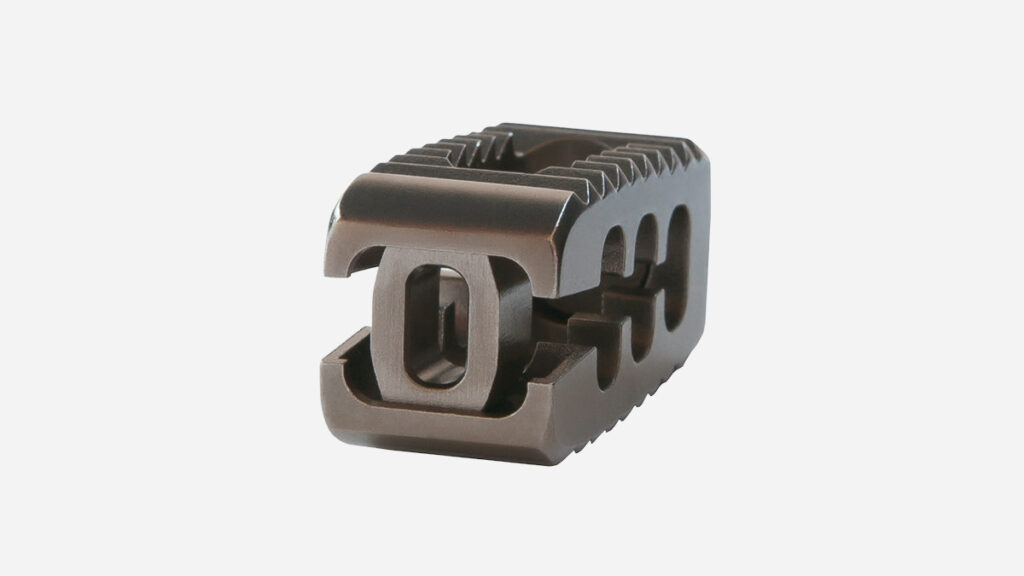

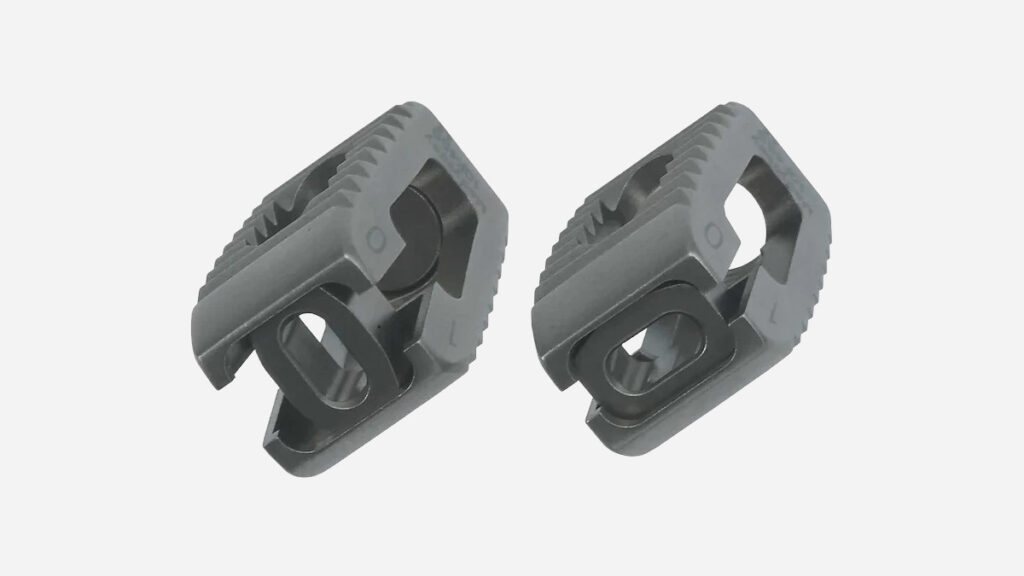

  • Expandable Cage
  • Offering 8 & 10 lordotic angles once expanded
  • 2.0-2.5mm lifted up in front once expanded
  • Made up of Titanium Alloy
  • 9 – 15mm in Height
  • 24 – 27mm in Length
  • Grooved surface
  • Simplified instrumentation to restore disc height and lordosis
  • POSTERIOR INTERBODY FUSION CAGE (PLIF)
  • With EBM 3D Printing technology
  • Cages made of Titanium alloy powder
  • High volume porosity capable of supporting tissue ingrowth
  • High coefficient of friction that can aid in initial device stability
  • Straight and lordotic (0°, 4° and 8°) cages
  • 8mm to 16mm height & 9mm and 10mm width
  • 25mm and 27mm length
  • Large surface for enhanced bone graft
  • POSTERIOR INTERBODY FUSION CAGE (PLIF)
  • Cages made of PEEK OptimaⓇ
  • Straight and lordotic (0°, 4° and 8°) cages
  • 8mm to 15mm height
  • 25mm, 27mm, 32mm, and 34mm length
  • Grooved surface

CERVICAL

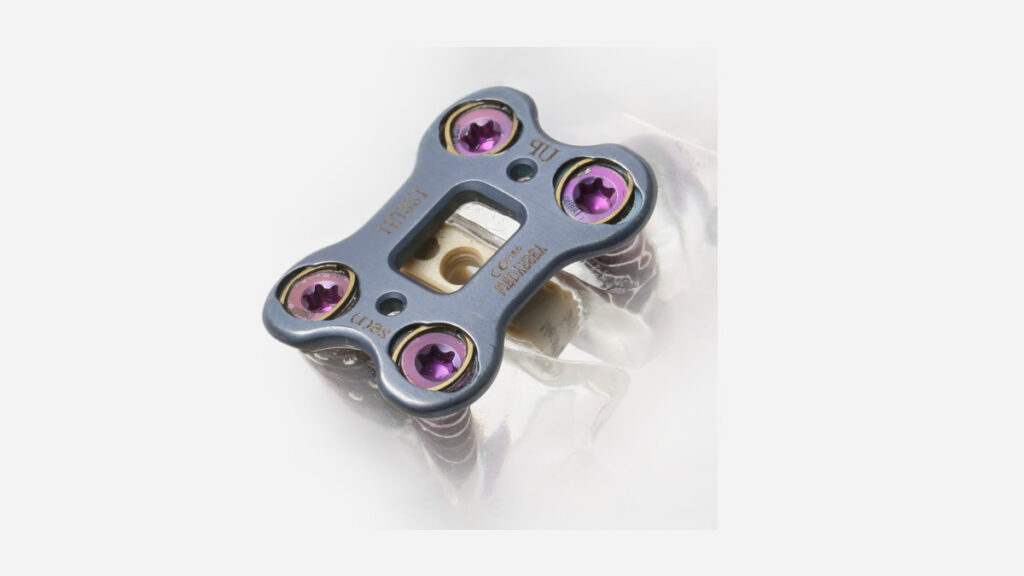

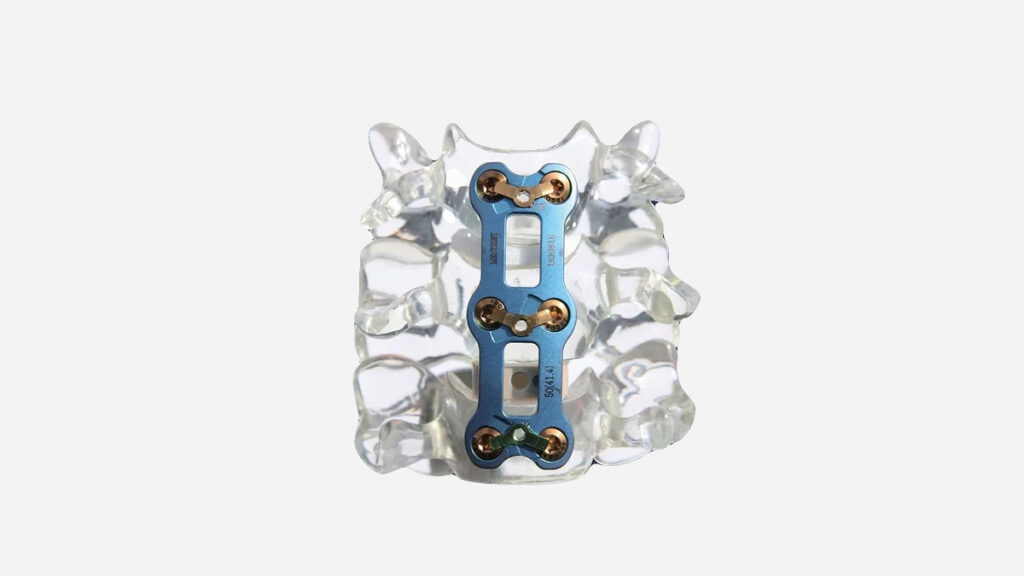

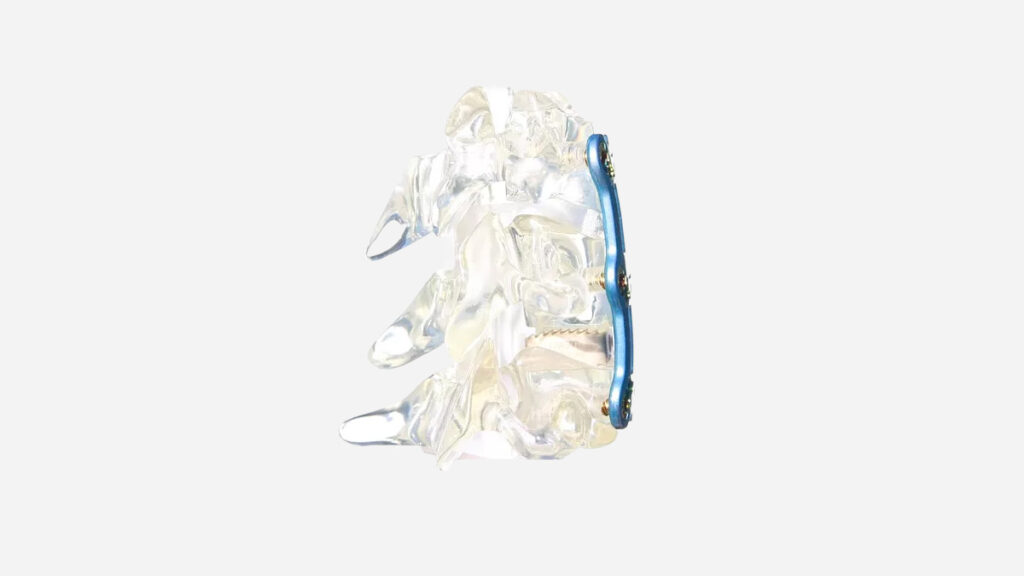

  • ANTERIOR CERVICAL FIXATION SYSTEM
  • Anterior cervical plate, made of Titanium alloy
  • Self-locking and Pre-Lordotic
  • 2.0mm profile, for 1 to 4 levels (C3 to C7)
  • 4.0mm and 4.5mm screws, with lengths of 10mm, 12mm, 14mm, 16mm and 18mm.
  • Variable and fixed Plate options
  • Self-drilling and self-tapping screw options
  • OCCIPITAL AND CERVICAL POSTERIOR FIXATION SYSTEM
  • Made of Titanium Alloy
  • 3.5mm and 4.0mm poly – axial screws
  • Pedicle screws, Smooth Shank screws, lateral mass screws
  • Straight, prebending rods from 30mm to 400mm
  • Dual rods available from 3.5mm rod with 4.5/5.5/60mm
  • Wide range Occipital plates(4 Holes, 5 Holes, 7 Holes)
  • Wide range of connectors
  • ( 3.5mm rod to 3.5/4.5/5.0/5.5/6.0/6.35mm rods )
  • ANTERIOR CERVICAL DISC FUSION CAGE
  • Hollow cage made of PEEK OptimaⓇ
  • Parallel, lordotic, and convex options.
  • Wide range of cage sizes Length x Width (12×14/14×16/14×12/16×14)
  • 4mm to 16mm height
  • Grooved surface

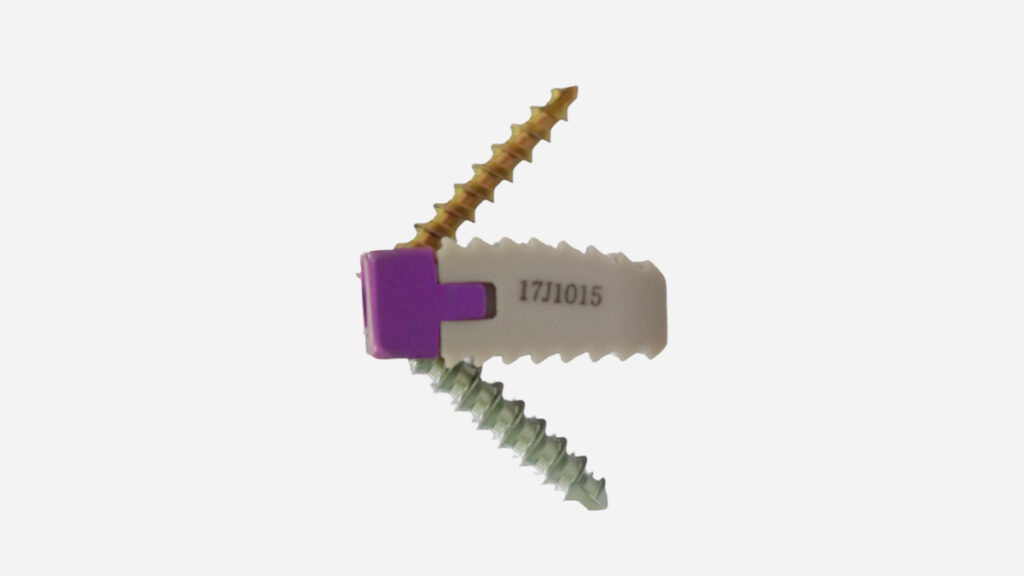

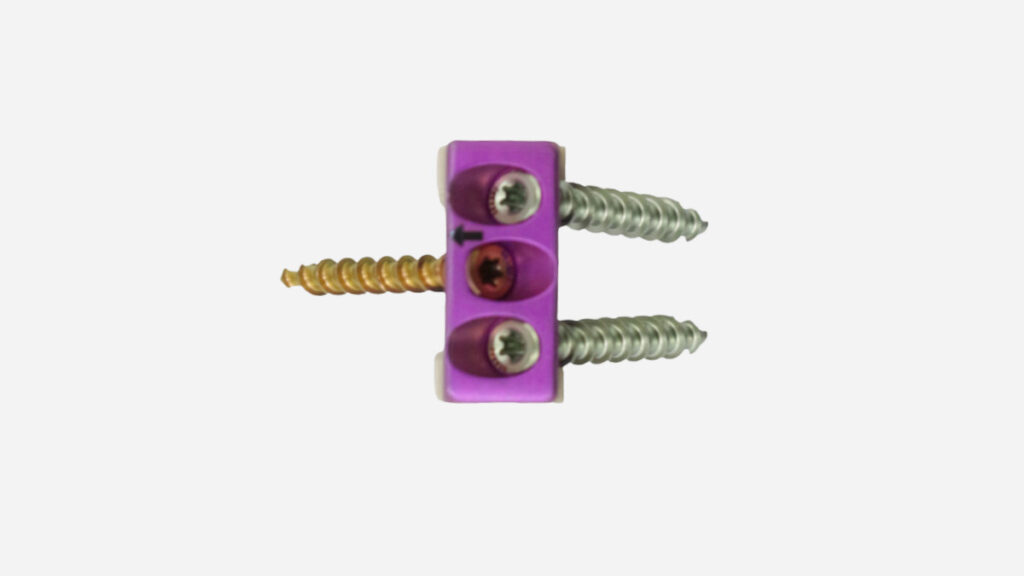

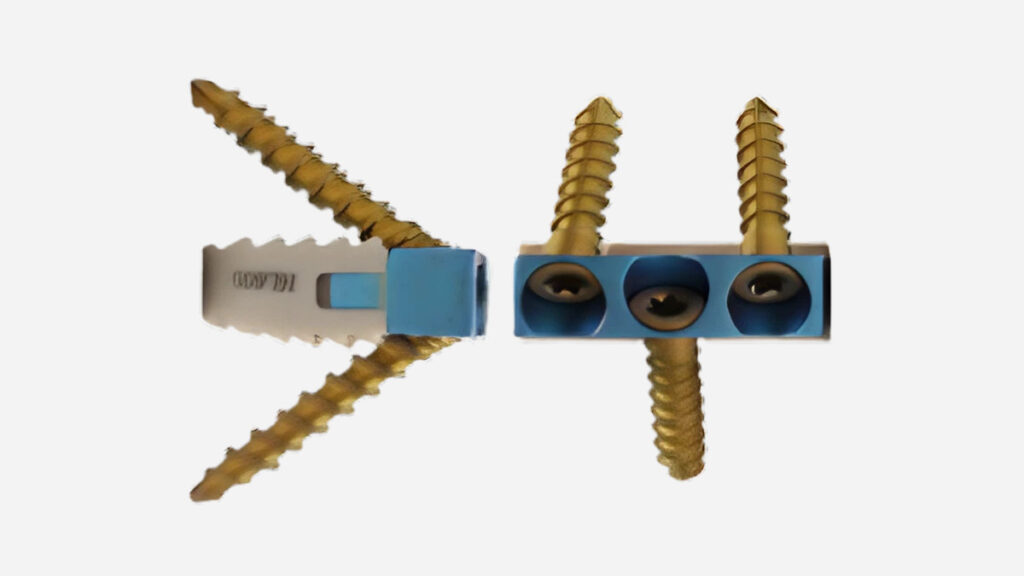

  • Made of PEEK and Titanium Alloy
  • The PEEK facilitates radiographic assessment of fusion, while reducing the risk of endplate penetration and bone damage.
  • Two tantalum markers allow accurate visualization and implant placement.
  • Lordotic and convex options, with 3 fixation points
  • Wide range of cage sizes Length x Width
  • 5mm to 10mm height
  • 2.5mm and 3.0mm self-tapping & locking screws
  • 12mm, 14mm and 16mm length
  • Grooved surface
  • Quick, simple and risk free alternative to arthrodesis
  • Reduces stresses at the posterior joints
  • Prevents lumbar pain at adjacent level of arthrodesis
  • Open up the foramena
  • Prevent degeneration of adjacents disc related to the
    arthrodesis and secondary lumbar spinal stenosis

CUSTOM-FIT PRODUCTS

  • CUSTOMIZED 3D CRANIOPLASTY WITH EBM 3D PRINTING TECHNOLOGY
  • Made of Titanium Alloy Powder
  • Custom made implants
  • Better aesthetic results
  • Improved procedural efficiency
  • More patient satisfaction
